Problem-led introduction

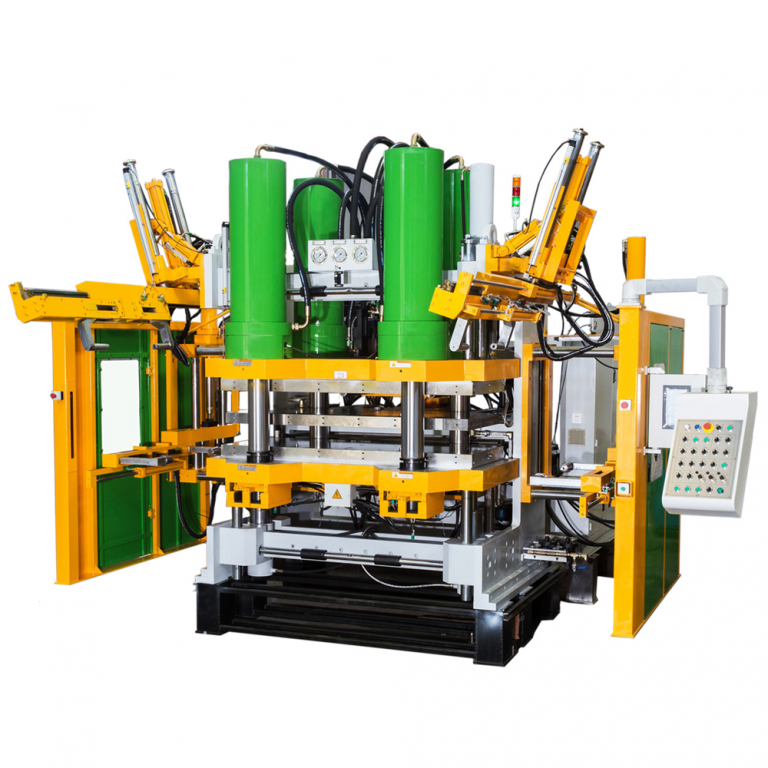

Defective cycles in high-vacuum custom injection molding usually trace back to trapped gas and porous fills; this hurts yields and feeds downtime into downstream processes such as conveyor maintenance. A reliable way to limit that downtime is to pair process fixes with robust material handling—starting with correct belt repair and splice solutions like a belt vulcanizing machine rubber belt vulcanizing machine. The COVID-19 2020–21 global supply disruptions made one thing obvious: small defects cascade into major production loss when spare parts and service windows are constrained.
Diagnosing the root causes
Air entrapment appears in three consistent patterns: trapped cavities at the flow front, micro-porosity from dissolved gases in the melt, and voids formed by poor venting. Key contributors include insufficient vacuum level in the chamber, poor degassing of the rubber compound, fast injection speed without proper vent channels, and uneven mold temperature. Use simple checks first—verify vacuum gauge readings, confirm vacuum pump suction, and inspect venting channels for blockages. These diagnostics separate material issues from machine or mold design faults.
Hands-on corrective actions
Start with material treatment: degas masterbatches and control moisture with pre-dry cycles. Raise melt temperature modestly to lower viscosity and enable better flow, but balance against thermal degradation. Improve mold venting by adding controlled vent slots at the parting line or micro-vents in low-pressure zones. Calibrate the vacuum system to reach and hold the target mbar during fill and cure phases; leaky seals or poor flange faces are frequent offenders. Adjust shot profiles to slow the initial fill, then speed up to pack—this reduces trapped air at the flow front while maintaining cycle time. For handling and downstream belt maintenance, a dedicated belt vulcanizing press helps ensure conveyor reliability after you fix molding yields—good logistics keep the line moving.
Validation and inspection routines
Implement non-destructive testing routines: visual inspection, ultrasonic scans for internal voids, and sample cross-sections on a controlled cadence. Track defect types and locations so you can correlate them with mold cavities, shot profiles, or compound batches. Run A/B trials when you change a variable—vacuum level, vent geometry, or cure time—and record the change in defect rate. Maintain a short failure log: date, cavity number, process change, and measurable outcome. This makes root-cause traceability practical, not theoretical.
Common mistakes to avoid
Teams often overreact by cranking vacuum above spec or increasing cure time excessively—both cause new problems like flash or burn marks. Another trap is neglecting tooling wear; eroded vent paths or warped inserts defeat perfect process settings. Also, don’t skip small maintenance tasks for the vacuum pump: oil level, seals, and filter replacement matter. Regular checks prevent surprise regressions—small vigilance saves hours of troubleshooting later.
Golden rules for durable solutions
1) Measure outcomes, not effort: track porosity rate, first-pass yield, and mean time between failures (MTBF) to evaluate change. 2) Prioritise fixes that reduce sources of gas—degassing, compound handling, and venting—before tuning cycle times. 3) Build maintenance into the schedule: vacuum pumps, flange faces, and vent slots need periodic attention. These three metrics provide a clear decision framework when investing in process upgrades or tooling.
In practice, pairing high-vacuum process controls with dependable equipment for material handling and repair aligns yield improvement with uptime. The practical value comes from predictable cycles and fewer emergency stops—HWAYI offers both the machine competence and service support required to close that loop. –
